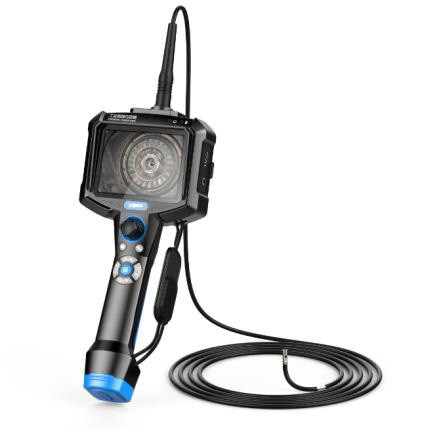

Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector

It is widely used in the internal video inspection of various devices and pipelines, so as to improve the accuracy and sensitivity of video detection. Equipped with different size, diameter of the probe. To meet your requirements, the probe can rotate 360°, vertically 270 °, will not miss any corner. Easy to operate with clear images.

Large screen, high brightness 5.7"color TFT-LCD display
Electric adjustment of optical focal length: 2X
Signal to noise ratio :≧52Db
The probe "electric" rotation: four direction (including center reset) 360° horizontally, 360° vertically
Probe Cable Length:1m~10m
Probe Diameter:6mm~30mm
Lens Length:20mm
Image/Vedio will be stored in the SD card (8G)
Image/Vedio: View, Delete, Print
Built in rechargeable lithium battery 8000mAh

Industrial Endoscope Application:

1) Auto industry:used to check the engine,hydraulic components,the nozzle part of the quality inspection and assembly testing.

2) Industrial machinery:used to check boiler,heat ex-changer,mechanical equipment and manufacturing equipement.

3) Petrochemical industry:for craft-oriented configuration pipes,pressure vessels,piping and other equipment inspection.

4) Aerospace and aviation:applied to the turbine,blade,combustor regular inspection and the body flaw detecting,also applied to the R&D and manufacturing of the rocket engine.

5) Railways,ships:adopt to turbines,heaters,diesel engines,boilers,fire,pipe inspection.
